K2 Water Disinfection Unit - WDU-4

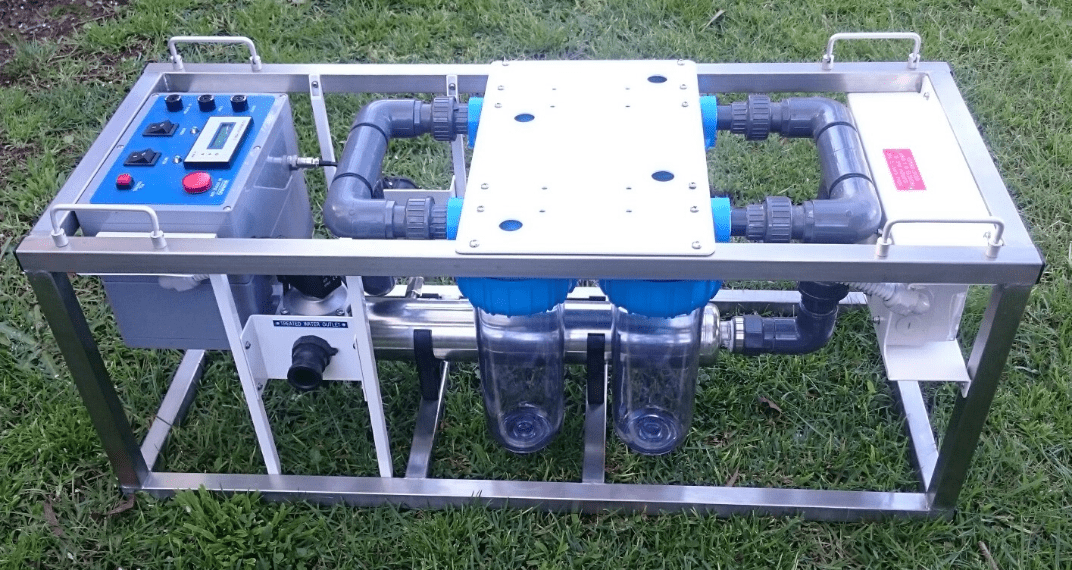

The K2 WDU-4 Water Disinfection Unit is manufactured in house in Australia and is designed for field use by emergency services personnel.
It has been challenge tested by an independent Australian NATA water testing laboratory for the removal of Giardia, Cryptosporidium and E-coli.
The unit has been sized to operate with the 60l/min pumps already in common use with these Emergency services, however a pump can be supplied if required. The unit is supplied in a space case, with spare filters and spare UV lamp and sleeve, etc, a pre- filter kit is also available, for use where the source water has a high turbidity level.
Operating voltage is 230vac and the electrical supply inlet, RCD and pump supply outlet are mounted on the s/s frame. Although designed to be used under cover, a waterproof cover is available to allow the unit to operate in the open.
The unit has a max flow of 32 to 34 litres/min, it has automatic shut down if the UV output falls below the minimum effective level, this turns off the supply pump and closes the outlet valve, to prevent untreated water entering/ leaving the unit.
Weight: Unit only (dry) 24kgs including spares.
Case Dims. 1100mm x 550mm x 450mm - weight 16kgs
Click here for our Data Sheet K2WDU-4DataSheet.pdf
or feel free to contact us for further information and pricing.
Please click on images below to enlarge.
For further information contact us.
