Robwen is a US manufacture of Foam Proportioning systems.

Specifically the Flomix which is a bladder tank system.

The  Flowmix 500 (20Litre) systems are available in both. “Built In” (500B) and portable versions (500P)

These units are operated by the flow of water through the connected water line and require no additional power.

 Tank refilling is via a 12 or 24 VDC transfer pump.

                • Proportioning rates are:
                • 0.1% to 1.0 % @ 20 to 1800 litre per minute
                • 3 % @ 600 litre per minute.

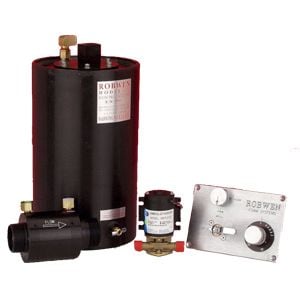

ROBWEN 500B





           ROBWEN 500P



The Flo-mix 500 is a 20 litre capacity tank, however various sizes can be produced for the 500B and 500P options.

The higher the capacity portable units are often used as a convenient and economic method of foam enhancing existing sprinkler systems as shown below.
